EZ-ACCESS TRANSITIONS® Angled Entry Ramp

We're here to guide you through making the right decision to fit your needs!

Call 262-549-4900 today to speak to a product expert!

---

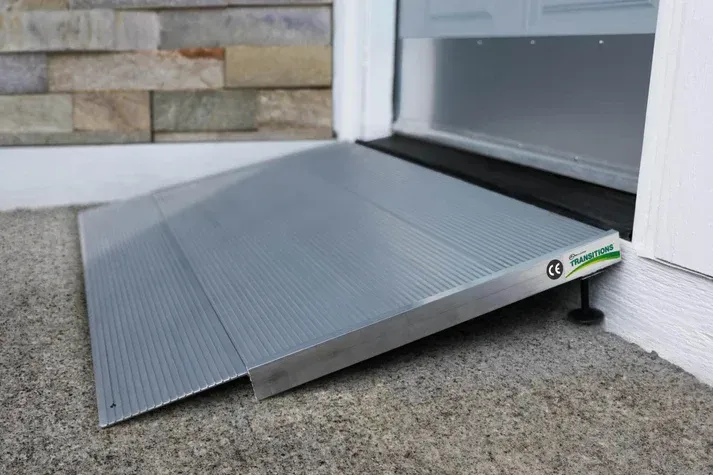

The TRANSITIONS® Angled Entry Ramp is a portable, stand-alone threshold ramp featuring independently adjustable legs with swivel feet, allowing for vertical adjustment ranging from 1.375" to 5.875" in height, depending on the ramp size purchased. This self-supporting aluminum threshold ramp is ideal for doorways that swing in and out, uneven surfaces, or single-step rises.

Usable Height Ranges :
• 12” Ramp w/ 1” Swivel Feet: 1-15/16” to 2-15/16"
• 24” Ramp w/ 1.5” Swivel Feet: 2-1/8" to 3-3/8"
• 24” Ramp w/ 2.5” Swivel Feet: 3-3/16" to 4-3/8"
• 36” Ramp w/ 2.5” Swivel Feet: 3-11/16" to 5-13/16"

---

Features:

EXTRUDED TREAD SURFACE

Offers slip resistance to ensure traction in any weather.

ADJUSTABLE LEGS WITH SWIVEL FEET

Allows for approximately 2 inches of vertical adjustments. The legs adjust independently, making the Angled Entry Ramp the perfect solution for uneven surfaces.

HIGH-STRENGTH ALUMINUM MATERIALS

This ramp is made completely out of high-strength aluminum which will not rust or corrode over time.

PRE-DRILLED SLOTS

Holes are pre-drilled for anchoring. Hardware included.

---

Specs:

Specification	Details
Models	TAER 12; TAER 24; TAER 36
Material	Aluminum (all models)
Slip-Resistant Surface	Yes (all models)
Overall Dimensions	TAER 12: 11-7/8” x 36-1/4”; TAER 24: 23-7/8” x 36-1/4”; TAER 36: 35-7/8” x 36-1/4”
Height (Ramp Only)	TAER 12: 1-3/8”; TAER 24: 1-11/16”; TAER 36: 3-5/16”
Usable Height Range w/ 1" Swivel Feet	TAER 12: 1-15/16” to 2-15/16”; TAER 24: N/A; TAER 36: N/A
Usable Height Range w/ 1.5" Swivel Feet	TAER 12: N/A; TAER 24: 2-1/8” to 3-3/8”; TAER 36: N/A
Usable Height Range w/ 2.5" Swivel Feet	TAER 12: N/A; TAER 24: 3-3/16” to 4-3/8”; TAER 36: 3-11/16” to 5-13/16”
Weight	TAER 12: 5.2 lbs; TAER 24: 10.4 lbs; TAER 36: 15.2 lbs
Weight Capacity	700 lbs (all models)
For Wheelchairs & Scooters	Yes (all models)
For Residential Use	Yes (all models)
Warranty	Lifetime (all models)

---
